Kedley Orthopaedic Lace Up Ankle Brace – Universal – Rigid Lace-Up Ankle Support for Ankle Sprain Recovery, Lateral Ligament Injury, Chronic Ankle Instability, Post-Fracture Rehabilitation & Return to Sportc
Kedley Orthopaedic Lace Up Ankle Brace – Universal – Rigid Lace-Up Ankle Support for Ankle Sprain Recovery, Lateral Ligament Injury, Chronic Ankle Instability, Post-Fracture Rehabilitation & Return to Sportc
30-Day Return Policy, SSL-Protected Checkout
Product Details
Product Details
Kedley Orthopaedic Lace Up Ankle Brace – Universal – Rigid Lace-Up Ankle Support for Ankle Sprain Recovery, Lateral Ligament Injury, Chronic Ankle Instability, Post-Fracture Rehabilitation & Return to Sport
The Kedley Orthopaedic Lace Up Ankle Brace is a Support Level 5 rigid ankle brace providing the highest level of ankle immobilisation and stability available within the Kedley ankle range without casting. The brace combines two complementary support mechanisms: a lace-up inner closure that creates a conforming, circumferentially secure fit around the entire ankle and lower leg, and dual adjustable Velcro straps applied in a figure-of-8 configuration that deliver targeted medial-lateral stabilisation of the talotibial and subtalar joints. The polypropylene structural component provides the semi-rigid lateral support that distinguishes this Level 5 brace from the Aero-Tech Advanced Ankle Support (KED049, Level 5 neoprene with figure-of-8 power band) — the Lace Up Brace uses structural polypropylene to constrain inversion-eversion, making it the appropriate choice when maximum mechanical ankle stability is the primary therapeutic requirement.
The Lace Up Ankle Brace is from the Kedley Orthopaedic range, positioned as the highest support tier for ankle pathology — appropriate for Grade II–III lateral ligament sprains, chronic lateral ankle instability, return-to-sport with persistent ankle instability, and post-fracture rehabilitation where rigid brace support is preferred over casting. Universal one size, fits left and right ankle. MHRA Class 1 Medical Device. No Latex. Materials: Polyester, Polypropylene, Foam. EAN: 6003058068262.
Lace-up inner closure provides circumferential ankle conformity; dual figure-of-8 Velcro straps add targeted medial-lateral stabilisation — two independent support elements working together for maximum mechanical ankle control.
Structural polypropylene component restricts the inversion-eversion movement that drives lateral ligament injury and instability — the mechanism that separates Level 5 rigid bracing from neoprene compression alone.
Universal bilateral design eliminates the need for separate left and right versions — one brace for either ankle, adjustable for individual fit within the universal size range.
From the Kedley Orthopaedic range, Support Level 5 — the highest mechanical ankle support level in the Kedley range, appropriate for significant ankle pathology requiring rigid stabilisation. MHRA Class 1 Medical Device.
- Support Level 5 — Rigid Lace-Up Ankle Brace: The Lace Up Ankle Brace is the highest support level in the Kedley ankle range — providing rigid structural ankle immobilisation through a dual-mechanism system of lace-up inner conformity and figure-of-8 Velcro strap stabilisation. Level 5 is the appropriate tier for presentations where the ankle requires maximum mechanical restraint of inversion-eversion movement: Grade II–III lateral ligament complex sprains, established chronic lateral ankle instability, high-demand return-to-sport with persistent instability, and post-fracture rehabilitation bracing. The distinction from Level 3–4 elastic and neoprene supports is fundamental — where compression sleeves and neoprene braces provide proprioceptive enhancement and compression, this Level 5 brace uses structural polypropylene to mechanically constrain the pathological movement patterns that drive ligament re-injury and chronic instability.
- Lace-Up Inner Closure — Circumferential Conformity: The lace-up design achieves a conforming fit around the entire ankle and lower leg from the toes to the distal tibia — distributing support pressure circumferentially rather than through focal strap contact points. Lacing tension is independently adjustable along the full length of the brace, allowing tighter fixation at the malleolar level where lateral ligament stabilisation is most critical, and slightly looser lacing more proximally for comfort. This progressive tension adjustment is not available with buckle or simple Velcro closure designs, and contributes to the superior mechanical fixation that characterises lace-up brace designs at this level of support.

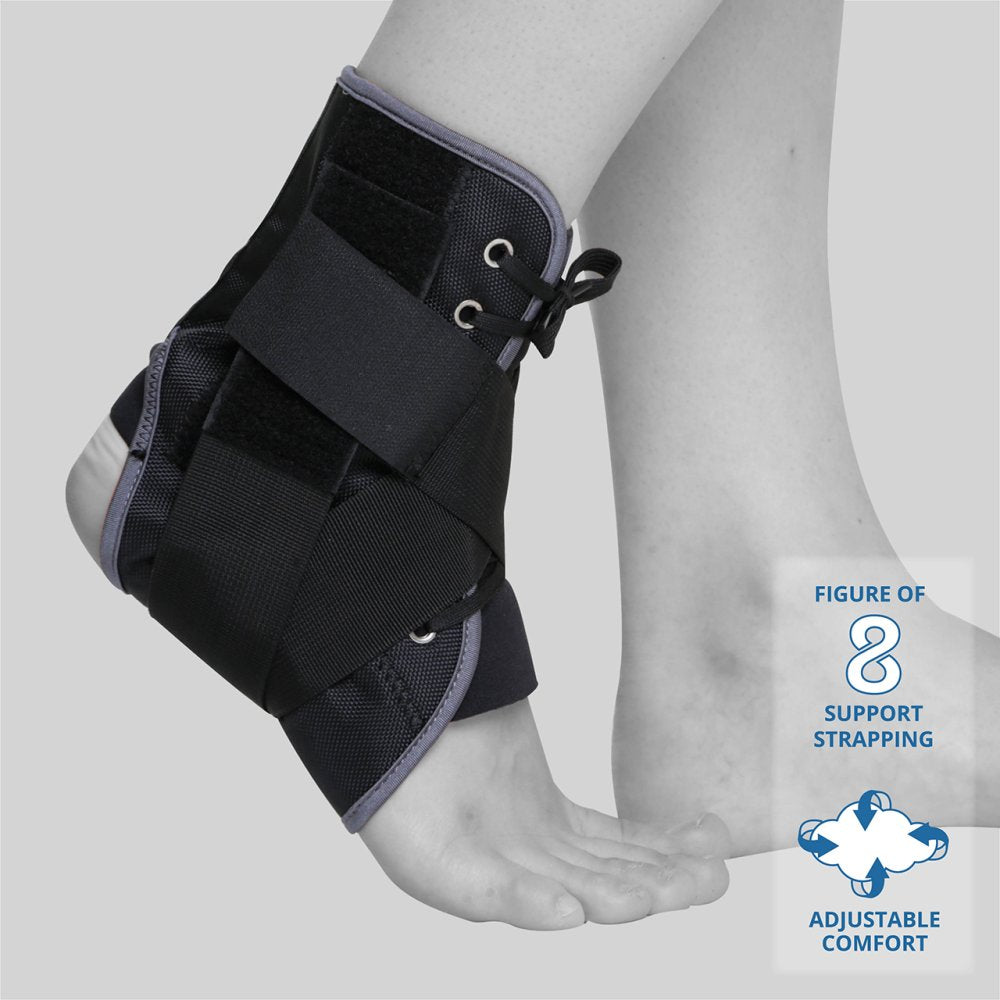

- Dual Velcro Figure-of-8 Straps — Targeted Medial-Lateral Stabilisation: Over the laced inner, two adjustable Velcro straps are applied in a figure-of-8 pattern — wrapping around, over, and under the foot. This replicates the biomechanical principle of ankle taping: the straps cross the anterior ankle and subtalar joints, providing mechanical resistance to both inversion (lateral ligament loading) and eversion movements. The Velcro closure allows strap tension to be calibrated precisely to the required support level without the progressive loosening that occurs with laces alone during activity.
- Polypropylene Semi-Rigid Structure: The polypropylene component provides the structural rigidity that makes this a true mechanical brace rather than a compression-only device. Polypropylene in orthopaedic bracing is used for its combination of stiffness, low weight, and resistance to deformation under load — it forms the lateral stability element that constrains inversion beyond the neutral position, protecting the lateral ligament complex (anterior talofibular, calcaneofibular, and posterior talofibular ligaments) from repeat loading injury.
-
Kedley Ankle Range — Level Comparison:
Product Level Mechanism Best For Active Elasticated Ankle Support 3 Elastic compression sleeve Mild ankle ache, proprioceptive support, mild swelling Aero-Tech Advanced Ankle Support (KED049) 5 Neoprene + figure-of-8 power band; Contains Latex Moderate sprain recovery, compression + active support Lace Up Ankle Brace (KED016) — this listing 5 Polypropylene semi-rigid + lace-up + figure-of-8 Velcro straps; No Latex Grade II–III sprain, chronic instability, return-to-sport, post-fracture rehabilitation Both the Aero-Tech Advanced Ankle Support and the Lace Up Ankle Brace are rated Support Level 5, but differ significantly in mechanism — the Aero-Tech uses neoprene compression and an elasticated power band, while the Lace Up Brace uses polypropylene rigid structure and mechanical fixation. The Lace Up Brace provides superior inversion-eversion control for presentations requiring true rigid mechanical stabilisation. The Aero-Tech is preferred where compression and heat retention are additionally required and latex sensitivity is not a concern.
- No Latex: Material content (Polyester, Polypropylene, Foam) does not include Latex. No latex sensitivity advisory applies to this product.
- MHRA Class 1 Medical Device: Registered with the Medicines and Healthcare products Regulatory Agency — confirming compliance with UK medical device regulatory standards.
| Condition | Key Clinical Features | Lace Up Ankle Brace Appropriate? |
|---|---|---|
| Lateral ankle sprain — Grade I (mild) | Anterior talofibular ligament stretch; localised swelling and tenderness; weight-bearing maintained; no instability | May use, though a Level 3 elasticated sleeve is often sufficient for Grade I. Level 5 bracing can be appropriate for Grade I in high-demand athletic populations where recurrence prevention is the priority. |
| Lateral ankle sprain — Grade II (moderate) | Partial ATFL tear ± CFL involvement; significant swelling and bruising; some instability on anterior drawer; weight-bearing possible but painful | ✓ Yes — Level 5 rigid bracing is the recommended support tier for Grade II sprains. Provides mechanical protection of the partially disrupted ligament complex during functional rehabilitation. |
| Lateral ankle sprain — Grade III (severe) | Complete lateral ligament complex tear; marked instability; significant swelling and bruising; Ottawa positive | ✓ Yes following A&E assessment — Grade III sprains should be assessed by A&E/fracture clinic to exclude fracture (Ottawa rules). Once fracture excluded and conservative management confirmed, Level 5 brace is appropriate for functional rehabilitation. Physiotherapy referral recommended. |
| Chronic lateral ankle instability (CAI) | History of recurrent lateral sprains; persistent subjective instability; giving way on uneven ground; often follows inadequately rehabilitated initial injury | ✓ Yes — chronic instability is a primary indication for Level 5 lace-up bracing during sporting and demanding activity. Evidence supports mechanical bracing reducing recurrent sprain risk in CAI. Proprioceptive rehabilitation should accompany brace use. |
| Return to sport — ankle instability history | Athlete returning to sport following ankle sprain or with known instability; high demand on lateral ankle stability | ✓ Yes — lace-up ankle bracing during return-to-sport is robustly evidence-supported for reducing recurrent ankle sprain risk in athletes with prior ankle sprain history. Can be worn inside a sports boot. |
| Post-ankle fracture rehabilitation | Following Weber A/B fracture or lateral malleolus fracture managed conservatively or following cast removal; ankle stiffness and instability on weight-bearing | ✓ Yes as directed by fracture clinic — rigid brace support during post-fracture rehabilitation replaces the mechanical protection of the cast during return to weight-bearing. Confirm with fracture management team before recommending. |
| Ankle arthritis (tibiotalar OA) | Chronic ankle aching; loss of dorsiflexion/plantarflexion; worse with prolonged walking or uneven surfaces; age-related or post-traumatic | ✓ Yes for activity-related symptom management — rigid bracing reduces arthritic ankle joint loading during demanding activity and provides medial-lateral stability on uneven surfaces. |
| Medial ligament (deltoid) sprain | Medial ankle pain; swelling below medial malleolus; eversion mechanism injury; associated with pronation pattern | Appropriate for medial stability — confirm mechanism and exclude associated fracture (particularly base of 5th metatarsal and medial malleolus) before recommending brace without medical assessment. |
| Suspected ankle fracture | Ottawa rules positive — bony tenderness at malleoli, base of 5th metatarsal, or navicular; inability to weight-bear | A&E assessment for X-ray required. Do not apply this brace to a suspected fracture without imaging. Pharmacy-supplied brace is appropriate only after fracture has been excluded or formal fracture management plan confirmed. |
| Achilles tendon rupture | Sudden posterior ankle pain; palpable gap; positive Thompson test; inability to plantarflex against resistance | A&E attendance required. Achilles rupture requires specialist orthopaedic assessment. This brace is not appropriate management. |
Ottawa Ankle Rules — Pharmacy Referral Guidance: The Ottawa Ankle Rules are a validated clinical decision tool for identifying patients who require X-ray following ankle injury. Refer for A&E assessment if the patient reports any of:
- Bony tenderness at the posterior edge or tip of either malleolus (medial or lateral)
- Bony tenderness at the base of the 5th metatarsal
- Bony tenderness at the navicular (medial midfoot)
- Inability to weight-bear immediately after the injury and at assessment (four steps)
Absence of all four criteria has a high negative predictive value for clinically significant fracture in adults. Patients meeting any criterion should not be discharged with a brace as a definitive management plan without imaging.
⚖️ Fair Balance — Bracing vs Rehabilitation: Mechanical ankle bracing is an evidence-based adjunct to functional rehabilitation following ankle sprain — it is not a substitute for it. Clinical evidence consistently demonstrates that functional rehabilitation (balance training, proprioceptive exercise, progressive loading) combined with mechanical bracing produces superior long-term outcomes compared to bracing alone or prolonged immobilisation without rehabilitation. Chronic ankle instability and recurrent sprain are predominantly associated with inadequately rehabilitated initial injuries — proprioceptive deficit and peroneal muscle weakness — that mechanical bracing alone cannot address. Patients with Grade II–III sprains or chronic instability should be directed to physiotherapy alongside brace recommendation. Brace use should be progressively weaned as proprioceptive function and peroneal strength are restored through rehabilitation.
- Step 1 — Undo all straps and laces fully: Before application, completely undo the Velcro straps and loosen the laces to their fullest extent so the brace can be opened wide enough to slide over the foot and ankle without resistance.
- Step 2 — Slide over the appropriate foot and lace up: Position the foot into the brace with the ankle in a neutral position (90° dorsiflexion, not plantarflexed). Tie the laces firmly but comfortably — working progressively from the toe end upward. The lacing should be tightest at the malleolar level and slightly looser proximally. The brace should feel firmly conforming around the entire ankle without focal pressure points.
- Step 3 — Apply the Velcro straps in a figure-of-8: Take the straps and wrap them round, over, and under the foot in a figure-of-8 motion, then fasten the Velcro. The figure-of-8 strap application replicates the biomechanical principle of ankle taping — crossing the anterior ankle and subtalar joint to restrict inversion-eversion while allowing dorsiflexion-plantarflexion for walking. Pull the straps firmly — firmer strap tension provides greater inversion-eversion control, which is the primary therapeutic purpose of the Level 5 brace.
- Step 4 — Check the fit and circulation: The brace should feel tight and secure but must not restrict circulation. After application, confirm all five toes have normal warmth, colour, and sensation — move the toes freely to confirm. Any toe numbness, tingling, or colour change (pallor or blueness) indicates excessive strap tension — loosen the laces and/or straps and recheck immediately. If normal circulation cannot be confirmed, remove the brace and seek medical advice.
- Wearing inside footwear: The lace-up brace is designed to be worn inside a shoe or sports boot rather than over footwear. Ensure the footwear is sufficiently wide to accommodate the brace without creating additional pressure points — a shoe that is comfortable without the brace may feel tight with it. Wider-fit footwear, sports boots, or specialist orthopaedic footwear with removable insoles can improve brace compatibility.
- Wearing schedule: For acute sprains, wear continuously during waking activity until pain and swelling have sufficiently resolved, then progressively transition to sport-specific or high-demand activity use only as tolerated during daily activity without the brace. For chronic instability and return-to-sport, wear during training and competition and wean during daily activity as proprioceptive rehabilitation progresses.
- Washing: Hand wash in lukewarm soapy water, rinse thoroughly, and air dry completely before re-use. Do not machine wash, tumble dry, or iron. Store in a cool, dry place away from direct heat and sunlight. No removable components — wash as a complete unit.
Pharmacist Guidance — Confirming Mechanical Fixation at Point of Dispensing: The therapeutic effectiveness of a Level 5 lace-up brace is directly dependent on correct application — specifically the figure-of-8 strap technique and adequate lace tension at the malleolar level. Demonstrating the figure-of-8 strap application to the patient at point of dispensing, confirming they can replicate it independently, and checking that the final fit produces visible mechanical resistance to passive inversion significantly improves therapeutic outcomes. A brace that is loosely laced or has the straps applied in a straight wrap rather than figure-of-8 pattern provides substantially reduced inversion-eversion control — reducing it to the functional equivalent of a Level 3 elasticated sleeve.
⚠️ Important Safety Information:
- Suspected Fracture — A&E First: Do not apply this brace to an ankle that meets Ottawa Ankle Rules criteria without prior imaging to exclude fracture. Applying a brace to an undiagnosed ankle fracture can cause neurovascular compromise and delay appropriate management.
- Circulation Check After Application: Immediately after fitting and after any tightening adjustment, confirm all five toes have normal warmth, colour, and sensation. Any numbness, tingling, pallor, or blueness in the toes requires immediate loosening of laces and straps. If neurovascular symptoms do not resolve promptly, remove the brace and seek medical assessment.
- Achilles Tendon Rupture: Sudden severe posterior ankle pain with inability to rise onto tiptoe requires A&E assessment — do not manage with brace alone. Achilles rupture requires specialist orthopaedic evaluation.
- Ottawa Ankle Rules Positive: Refer for X-ray. A brace is not appropriate definitive management for an ankle that meets Ottawa criteria without imaging.
- Not for Prolonged Use Without Rehabilitation: Sustained brace dependence without concurrent proprioceptive and peroneal strengthening rehabilitation is associated with increased chronic instability risk. Patients should be directed to physiotherapy alongside brace recommendation for Grade II–III sprains and chronic instability.
- Footwear Compatibility: Ensure footwear is sufficiently wide to accommodate the brace without creating constriction. Tight footwear over the brace can cause focal pressure damage.
- Do Not Use over open wounds, broken skin, or active dermatological conditions on the foot or ankle.
- Discontinue Use if pain worsens, skin irritation or pressure sores develop, or any neurovascular symptoms occur in the toes or foot. Seek medical advice.
- Keep Out of Reach of Children.
| Specification | Detail |
|---|---|
| Brand | Kedley |
| Product | Orthopaedic Lace Up Ankle Brace |
| SKU | KED016 |
| EAN | 6003058068262 |
| Support Level | Level 5 (Rigid Lace-Up Ankle Brace) |
| Size | Universal (One Size Fits Most) |
| Fits | Left and Right Ankle |
| Design | Lace-up inner closure; dual adjustable Velcro straps in figure-of-8 configuration; polypropylene semi-rigid structure |
| Materials | Polyester, Polypropylene, Foam |
| Allergen Warning | None stated (no Latex) |
| Regulatory Status | MHRA Class 1 Medical Device (registered) |
| Product Range | Kedley Orthopaedic |
| Intended Use | Rigid support and stability around the entire ankle and joint; ankle sprain; lateral ligament injury; chronic instability; rehabilitation |
| Pack Contents | 1 Unit |
| Distributor (UK) | Paul Murray Plc (Murrays Health & Beauty) |
| Condition | New |
| Domain Product ID | UKM-KED016 |
